UVL-PA Wheelchair Lift (In bus step)

The UVL-PA wheelchair lift is a specialized and thoughtfully engineered accessibility solution that has been exclusively designed to cater to the unique needs of high-floor tour buses and city buses—two types of public and commercial transportation vehicles that often face challenges in accommodating passengers with mobility impairments due to their elevated entryways. High-floor tour buses, which are widely used for long-distance travel and scenic tours, and city buses, the backbone of urban public transit systems, carry a diverse range of passengers, making accessibility a key requirement for inclusive transportation. This purpose-built lift serves as a vital bridge between the ground and the elevated doorways of these buses, enabling wheelchair users to access public and tour transportation services with dignity, independence, and ease, thus enhancing the inclusivity of these travel options.

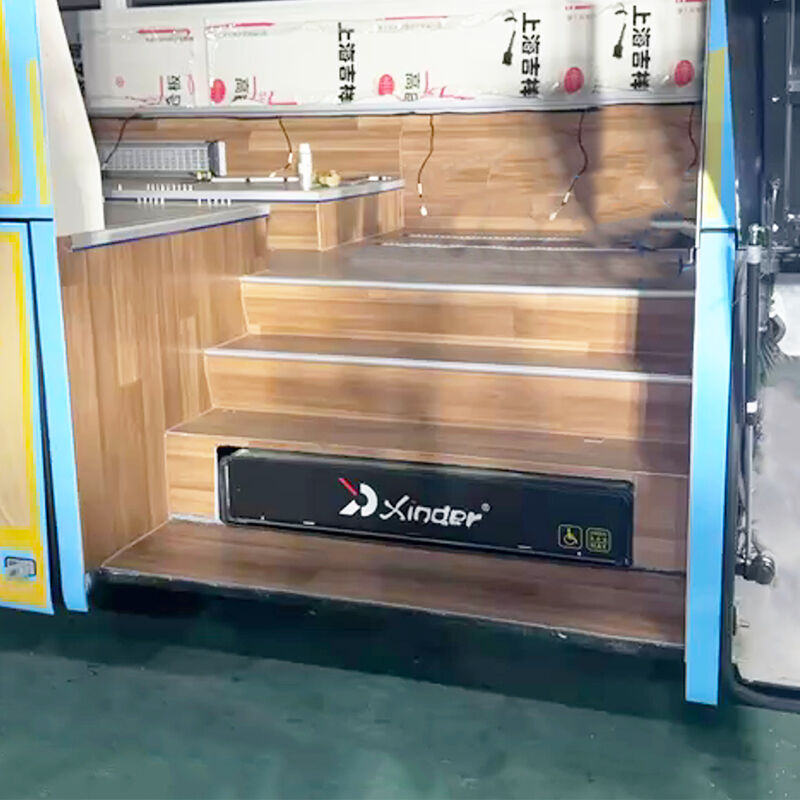

One of the most distinctive and user-centric features of the UVL-PA wheelchair lift is its clever installation design: it is seamlessly fitted inside the vehicle's steps, a strategic location that maximizes space efficiency. When not in use, the lift remains completely hidden within the step structure, eliminating any unnecessary occupation of the bus’s interior space. This hidden design is particularly advantageous for high-floor buses, where interior space is often at a premium and needs to be fully utilized for passenger seating and movement. By staying concealed when idle, the lift does not impede the movement of other passengers in the aisle or near the entryway, ensuring that the daily travel experience of non-disabled passengers remains uncompromised. It also maintains the neat and orderly appearance of the bus’s interior, avoiding the cluttered look that can be caused by bulkier, exposed accessibility devices, which is especially important for tour buses that aim to provide a comfortable and pleasant travel environment for passengers.

In terms of performance capabilities, the UVL-PA wheelchair lift boasts impressive specifications that make it highly reliable for real-world use scenarios. It has a maximum load capacity of 350kg, a robust rating that allows it to easily accommodate a wide range of wheelchairs—including heavy-duty motorized models, which are often heavier due to their battery and motor components—as well as the weight of the user. This generous load capacity ensures that the lift can meet the needs of most wheelchair users, making it a versatile solution for both tour and city buses that serve diverse passenger groups. Additionally, the lift offers a maximum lifting height of up to 1297mm, a dimension that is precisely calibrated to match the floor height of most high-floor tour and city buses. This precise lifting height ensures a seamless transition between the lift platform and the bus’s interior floor, eliminating gaps that could cause difficulties for wheelchair entry and exit, and enhancing the overall safety and convenience of the boarding process.

A key mark of the UVL-PA’s quality and compliance with international safety standards is its E-mark certification from the European Union. The E-mark certification is a rigorous and widely recognized certification system that sets strict requirements for the safety, performance, and reliability of automotive and transportation accessories. Obtaining this certification means that the UVL-PA wheelchair lift has undergone comprehensive testing and evaluation, verifying that it meets the high safety and quality standards required for use in European markets and beyond. This certification not only underscores the product’s reliability but also provides bus operators, passengers, and caregivers with strong confidence in its performance. For operation, the lift is controlled via a standard handheld remote switch, which is designed to be lightweight, ergonomic, and easy to use. The remote control allows operators to manage all lift functions—including lifting, lowering, and platform adjustment—from a safe and convenient distance, ensuring smooth, precise, and reliable operation every time. This user-friendly control design minimizes the learning curve for bus drivers and staff, making the lift easy to integrate into daily operational routines.

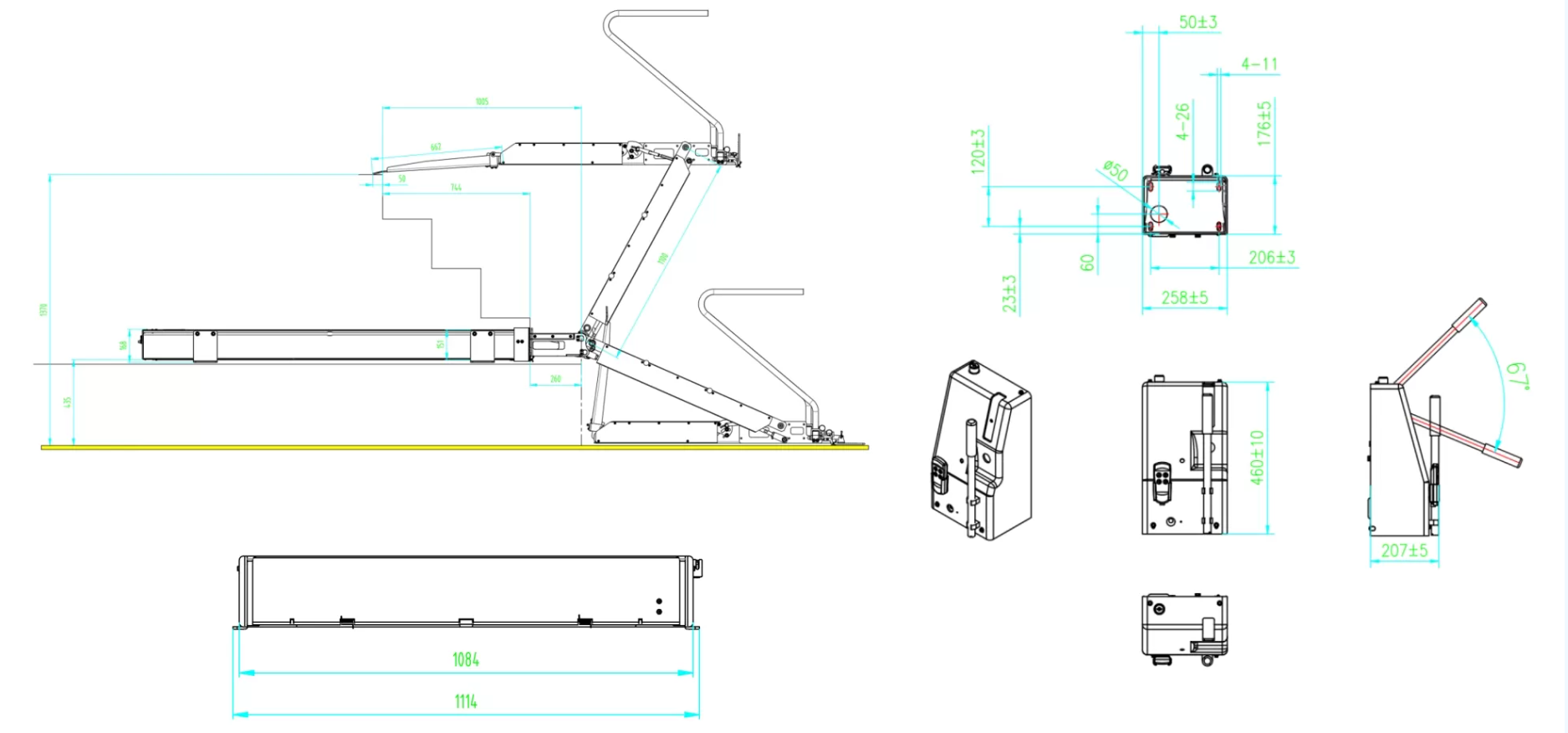

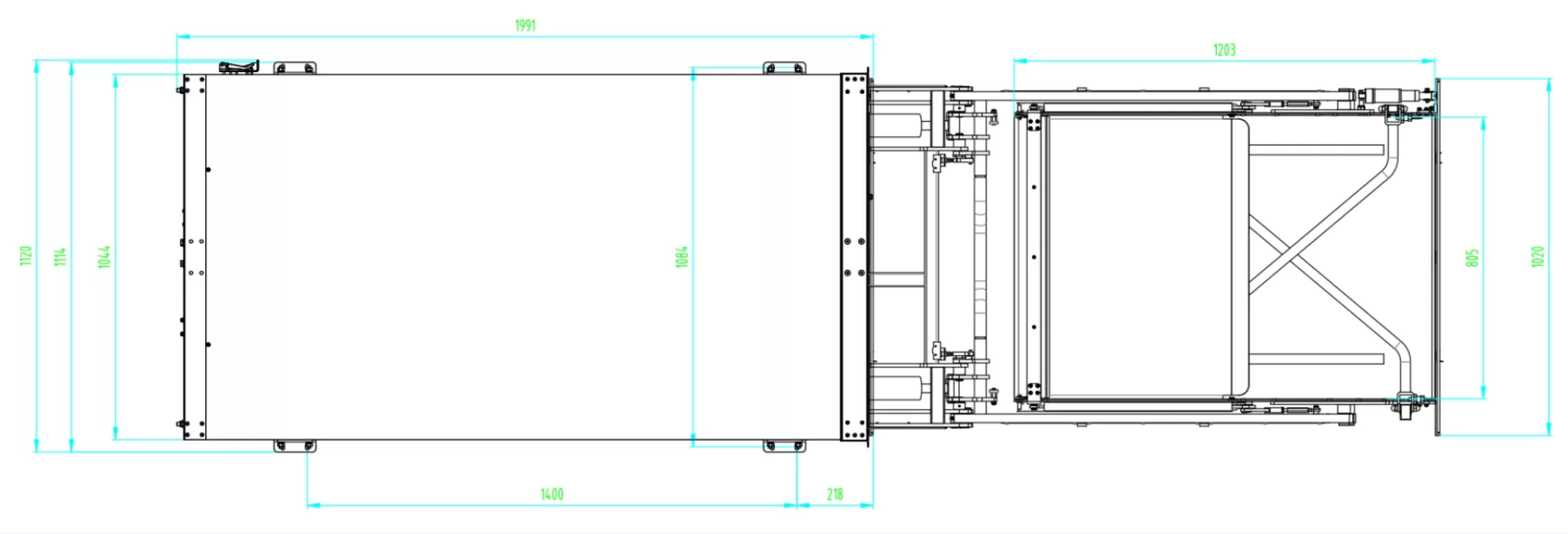

Product Parameters

Core Advantages

Exceptional Load Capacity and Accessibility: With a load capacity of up to 350kg and a lifting height of 1297mm, it can safely and efficiently serve wheelchair users on high-floor buses.

Comprehensive Safety Protection System: Equipped with full-process audible and visual alarms, mechanical automatic front and rear baffles, overload protection (375kg limit), and hydraulic locking after retraction, ensuring comprehensive operational and driving safety.

Excellent Environmental Adaptability:  With an IP67 protection rating and having passed a 500mm water depth wading test, it boasts excellent waterproof and dustproof performance, adapting to complex operating environments.

High Reliability and Durability: Key mechanisms have undergone over 10,000 cycles of horizontal and lifting tests, and comprehensive circuit protection against motor short circuits and reverse power connections ensures long-term stable operation.

Emergency and Safety Redundancy Design: Supports manual emergency retraction, ensuring the device can be safely reset in case of power failure or malfunction, eliminating user concerns.

Company Profile

Changzhou Xinder-Tech Electric Co., Ltd. was founded in 2001, the factory area of about 10,000 square meters, with more than 70 employees, research and development, production and sales in one, the domestic car accessibility facilities professional head manufacturer.

Our main products include wheelchair lifts, wheelchair boarding guides, electric steps, swivel seats, wheelchair stowage devices, wheelchair fixtures, seat fixtures, disabled car driving aids, trunk wheelchair lifts, etc., and we also provide matching and services for major domestic and foreign customers.
