ES-F-5/6/7 Series Multi-level Steps
The electric multi-stage folding step is an intelligent boarding assistance system designed specifically for high-floor RVs and special vehicles. It features a multi-stage folding structure (available in 4, 5, 6, and 7 stages), allowing it to be fully folded and stored vertically inside the vehicle, saving significant space. The step is electrically driven and easily controlled via a switch.
- Overview
- Recommended Products

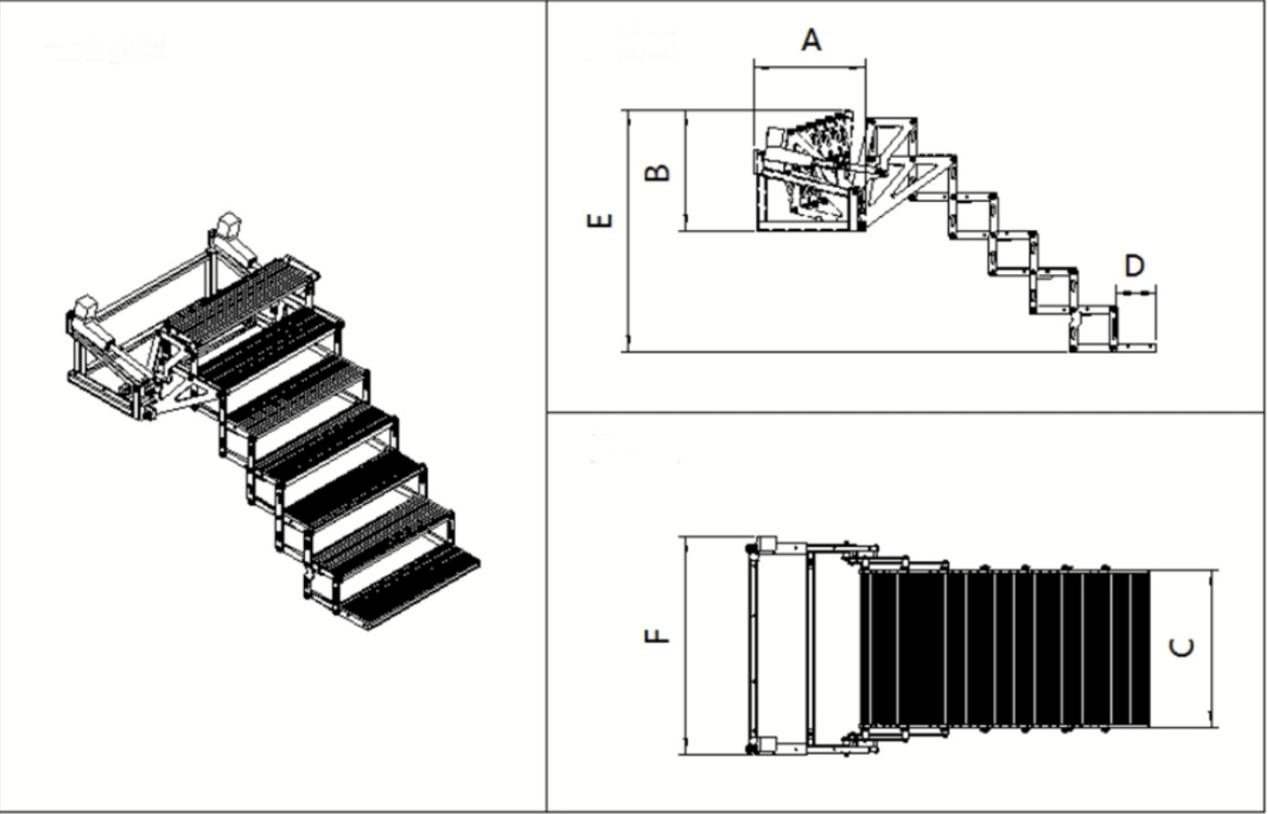

Product Parameters
Model |
gross depth A |
gross thickness B |
step width C |
step depth D |
Height (unfold) E |
gross width F |
Floor height above the ground |
ES-F-5-500*235 |
562 |
576 |
500 |
235 |
800 |
810 |
1100 |
ES-F-5-500*235 |
562 |
586 |
500 |
235 |
990 |
810 |
1350 |
ES-F-5-500*235 |
562 |
608 |
500 |
235 |
1218 |
810 |
1600 |
Core Advantages
Multi-level Extension for High Ground Clearance: Offers multiple specifications with 4 to 7 levels, flexibly adapting to the significant ground clearance of high-floor vehicles such as RVs and special vehicles, ensuring smooth and safe step-by-step access.
Interlocking Control and Concealed Storage: Can be linked with the cabin door for one-step operation; the unique vertical storage design extends significantly during use and occupies almost no external space when retracted.
Comprehensive Safety and Emergency Protection: Equipped with a door interlock function and a manual emergency operation device, ensuring safe and reliable use or retraction under all circumstances.
Intelligent Energy Saving and Circuit Protection: Automatically enters sleep mode within 10 seconds after retraction to save energy, and features self-protection against electrical misconnections, improving overall system reliability.
Lightweight and Durable Materials: Made of aluminum alloy profiles, ensuring structural strength and load-bearing capacity while achieving lightweight design and long-lasting corrosion resistance.
