Wheelchair Restraints

Home >  Products >  Wheelchair Aids >  Wheelchair Restraints

Wheelchair Restraints

ALL PRODUCTS

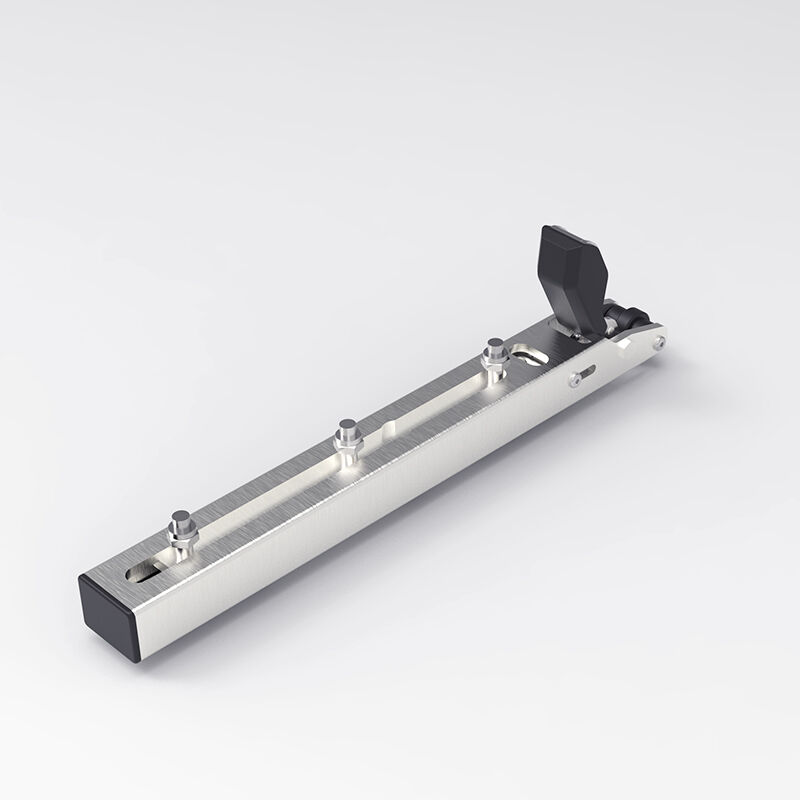

X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System
X-804 Seat Fixing System

X-804 Seat Fixing System

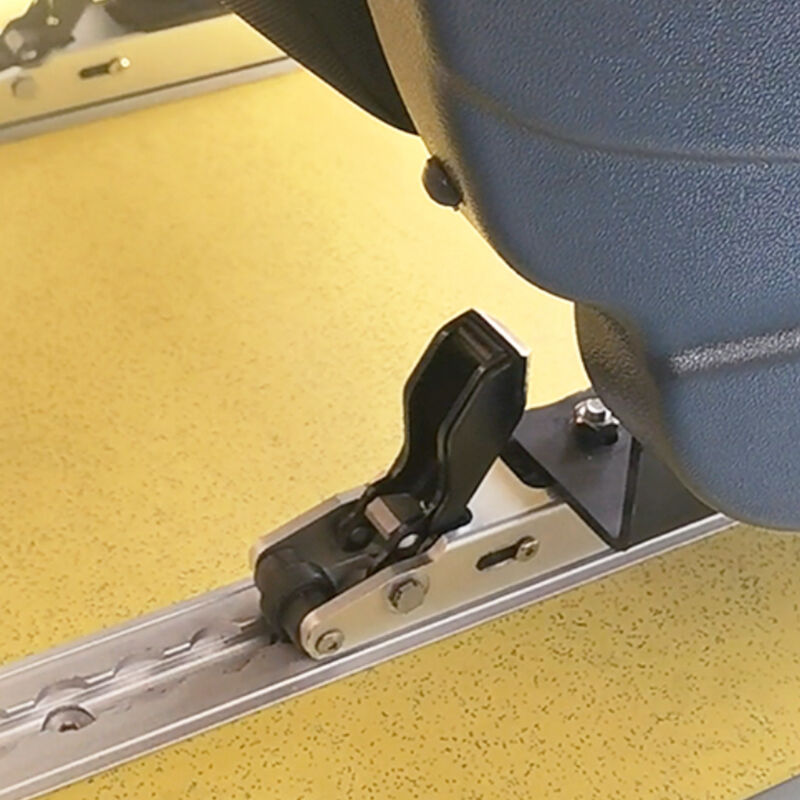

The quick-release seat mounting system is an innovative solution that enhances vehicle space flexibility. When a vehicle needs to temporarily accommodate a wheelchair passenger but lacks a dedicated parking area, the existing seat can be quickly removed without tools, transforming the area into a safe space for securing a wheelchair (in conjunction with the X800 series wheelchair restraint system).

Inquiry Solution
  • Overview
  • Recommended Products
The quick-release seat mounting system stands as an innovative and practical solution engineered to significantly enhance the space flexibility of various vehicles. In modern transportation scenarios, vehicles often need to adapt to diverse passenger needs, and this system addresses a critical challenge: accommodating wheelchair users without compromising the vehicle’s overall functionality. By enabling rapid transformation of interior space, it redefines how vehicles utilize their internal area, making it an ideal upgrade for commercial vehicles, public transport, and multi-purpose vehicles that serve mixed passenger groups.
A core advantage of this system lies in its tool-free, quick-release design, which simplifies the process of seat removal and reinstallation. When a vehicle needs to temporarily accommodate a wheelchair passenger but lacks a dedicated wheelchair parking area, the existing seat can be detached swiftly and effortlessly without the need for any specialized tools. This seamless removal process transforms the previously occupied seating space into a safe and spacious area specifically designed for securing a wheelchair. To ensure maximum safety and stability, this transformed space is intended to work in conjunction with the X800 series wheelchair restraint system, which securely fastens the wheelchair in place, preventing movement during vehicle operation and safeguarding the wheelchair user.
Beyond the ease of seat removal, the system also excels in facilitating quick and hassle-free seat reinstallation. Once the wheelchair passenger has disembarked and the need for a wheelchair space is no longer present, the removed seat can be reattached to its original position with minimal effort. This straightforward reinstallation process allows the vehicle to rapidly switch back to its standard seating configuration, ensuring that the space is efficiently reused for additional passengers.
By enabling seamless and rapid switching between "seating area" and "wheelchair area" functions, the quick-release seat mounting system significantly improves two key aspects of vehicle performance: space utilization and functional adaptability. In terms of space utilization, it eliminates the waste of fixed, underutilized areas, allowing every part of the vehicle’s interior to serve multiple purposes based on real-time needs. Regarding functional adaptability, it empowers vehicles to cater to the diverse requirements of different passenger groups—from able-bodied individuals to wheelchair users—without the need for permanent modifications or complex adjustments.
Overall, this innovative mounting system represents a significant advancement in vehicle interior design, prioritizing flexibility and inclusivity. Its tool-free quick-release mechanism, compatibility with the X800 series wheelchair restraint system, and easy reinstallation process make it a practical and reliable solution for enhancing vehicle versatility. Whether applied in public transport, commercial shuttles, or multi-purpose vehicles, it effectively meets the evolving demands of modern transportation, ensuring that vehicles can adapt to changing passenger needs while maintaining safety and efficiency.

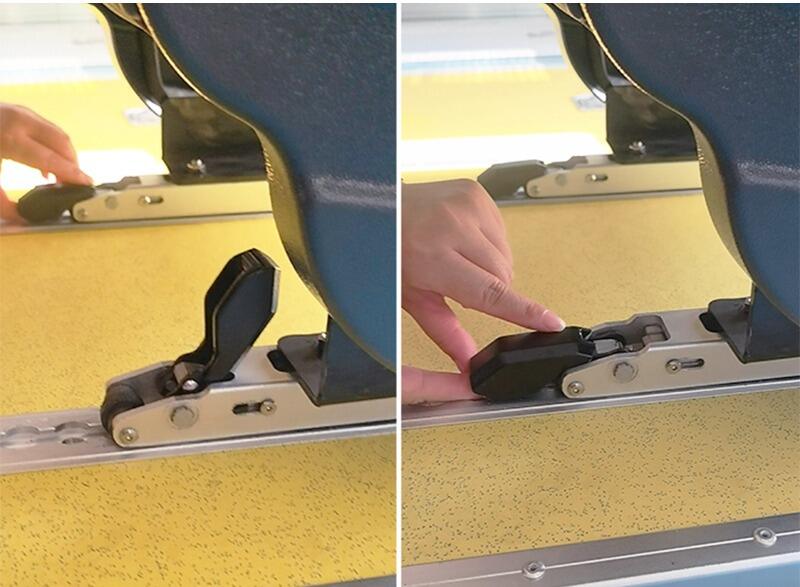

X-804 Seat Fixing System factory

Product Parameters

part name

1 row

2 rows

3 rows

seat fixing anchorage

2 units

4 units

6 units

tracks

2 units

2 units

2 units

track end caps

4 units

4 units

4 units

mounting bolts

1 set

1 set

1 set

rubber sealing strip (option)

2 units

2 units

2 units

Core Advantages

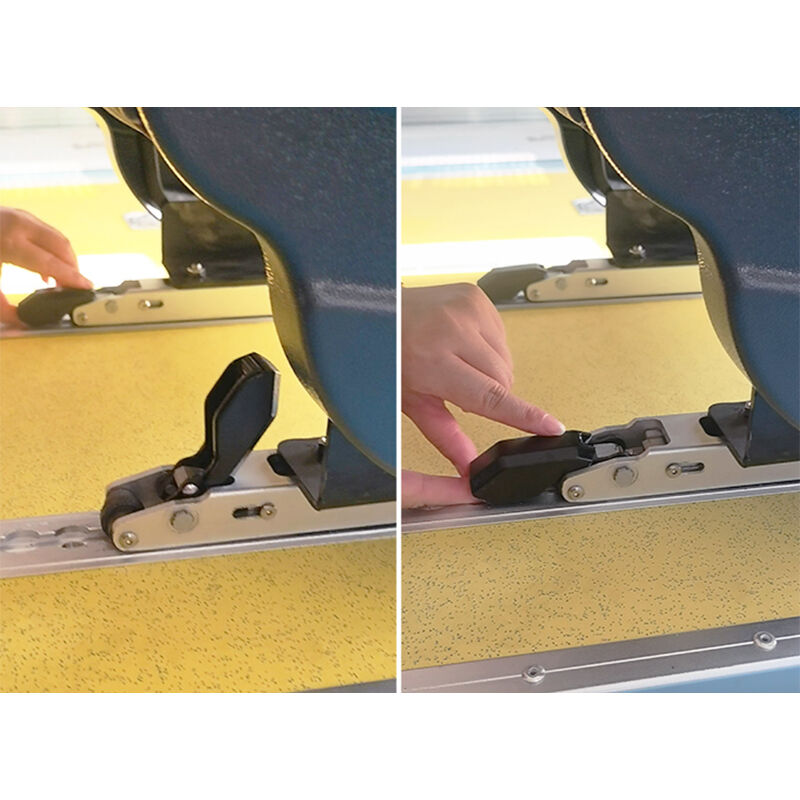

Tool-free, rapid conversion:  Featuring a tool-free design, seat installation and removal can be completed in under a minute, allowing for quick and convenient switching between standard seating areas and compliant wheelchair accessible areas.

Multi-purpose track, high compatibility: The fixing track is fully compatible with the X800 series wheelchair securing device track, enabling shared infrastructure and reducing modification costs and complexity.

Flexible configuration and adjustment: The track length can be customized according to the actual number of seats and layout requirements; after installation, the seats can still be adjusted for forward/backward position and spacing, maintaining seating flexibility.

Two installation options available: The fixing track offers two installation options: surface-mounted or recessed, to meet the different requirements of various vehicles regarding floor flatness and aesthetics.

Significantly improved vehicle utilization: Enables easy switching between regular passenger transport and accessible service modes, maximizing the satisfaction of diverse travel needs and improving operational efficiency.

Company Profile

Changzhou Xinder-Tech Electric Co., Ltd. was founded in 2001, the factory area of about 10,000 square meters, with more than 70 employees, research and development, production and sales in one, the domestic car accessibility facilities professional head manufacturer.

Our main products include wheelchair lifts, wheelchair boarding guides, electric steps, swivel seats, wheelchair stowage devices, wheelchair fixtures, seat fixtures, disabled car driving aids, trunk wheelchair lifts, etc., and we also provide matching and services for major domestic and foreign customers.

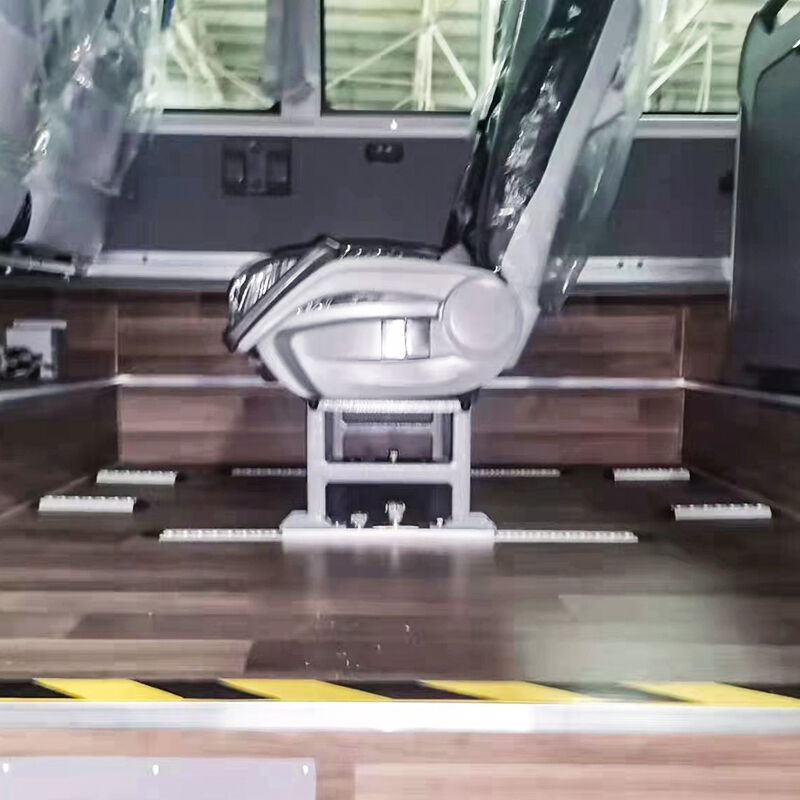

X-804 Seat Fixing System details

FAQ

Q1. What are your packing terms?

A: Generally, we pack goods in cartons, plywood cases or on pallets, with the specific method determined by your order quantity. This detail will always be clearly specified in the proforma invoice.

Q2. What are your payment terms?

A: We accept T/T payments. For regular orders, full payment is required. For large-value orders, a flexible payment plan is available: you can pay 30% as a deposit upfront, and the remaining 70% balance before delivery. We will notify you promptly once your order is nearly ready for shipment.

Q3. What are your delivery terms?

A: We support multiple trade terms including EXW, FOB, CFR, CIF and DDU to meet your different logistics requirements.

Q4. What is your delivery time?

A: Normally, delivery takes 3 - 30 days after we receive your advance payment. The exact lead time is subject to the type of products and the total order quantity.

Q5. Can you produce goods according to provided samples?

A: Absolutely. You can send us the sample photos or technical drawings, and our professional engineering team will evaluate the feasibility and provide feedback promptly.

Q6. What is your sample policy?

A: We can provide samples if the requested items are in stock. Please note that the sample cost and international courier fees will be borne by the customer.

Q7. Do you conduct quality tests on all goods before delivery?

A: Yes, we implement a strict 100% quality inspection for every batch of products prior to delivery to ensure they meet the required standards.

Q8. Do you accept OEM orders?

A: Yes, OEM services are available to meet your customized branding and product requirements.
